HRK-1
HRK-1
Approved number for advertising : 2013-I10-04-1445
Features

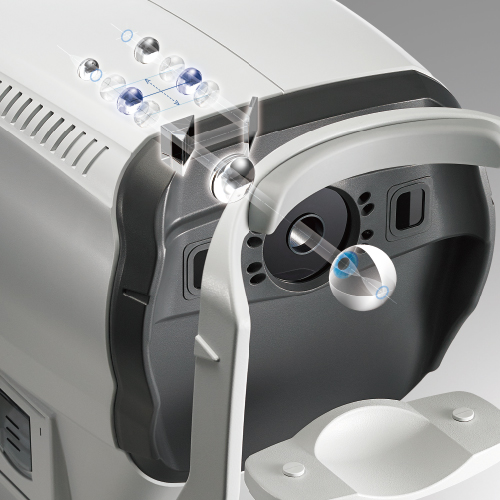

- 1. Smart Assembly Moving Control (SAMC) Tech
- Considering the refractive error of the patient, the measurement ring is projected on the retina, and is adjusted automatically by Smart Assembly Moving to secure a stable signal. HRK improves the effect of uneven light reflection in normal and cataract eyes with the results being more accurate refractive power REF data.
- 2. Quick Virtual Aiming Dot Function
- The Aiming Dot quickly guides you to easily find the patient’s visual apex from any position for fast alignment. Reliable refractive power REF data is then automatically obtained.

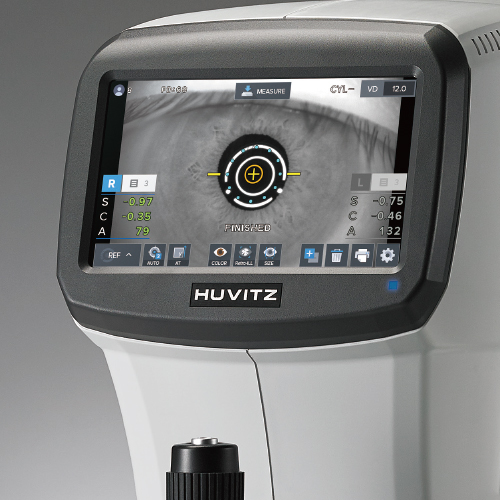

- 3. Immediate Color View Mode
- Full color camera and white LED light is used for color display, overall condition monitoring, contact lens fitting and prescription.
- 4. Contact Lens fitting Assistance Guide
- Image processing, using a fluorescence solution and yellow filter, automatically determines the fitting state.
Specifications
- 1. Measurement Mode
| K/R Mode |
Continuous Keratometry & Refractometry |
| REF Mode |
Refractometry |
| KER Mode |
Keratometry |
| Color View Mode |
Color View & Contact Lens Fitting Assistance (White & Blue LED조명 사용) |
- 2. Refractometry
| Vertex Distance (VD) |
0.0, 12.0, 13.75, 15.0 |
| Sphere (SPH) |
-30.00~+25.00D (VD=12mm) (Increments : 0.01, 0.12, 0.25D) |
| Cylinder (CYL) |
0.00~±12.00D (Increments : 0.01, 0.12, 0.25D) |
| Axis (AX) |
0~180˚(1˚unit) |
| Astigmatism Indication |
-, +,± (Mixed) |
| Pupil Distance (PD) |
10~85mm |
| Minimum Pupil Diameter |
ø2.0mm |
- 3. Keratometry
| Radius of Curvature |
5.0~13.0mm (Increments : 0.01mm) |
| Cornea Power |
25.96D~67.50D (Increments : 0.05, 0.12, 0.25D)(When cornea equivalent refractive index is 1.3375) |
| Cornea Astigmatism |
0.00~-15.00D (Increments : 0.05, 0.12, 0.25D) |
| Axis |
0~180˚ (Increments : 1˚) |
| Pupil, Iris Diameter |
2.0~14.0mm (Increments : 0.1mm) |
| Memory of Data |
10 measurements for each eye |
- 4. Auto Tracking Distance
- 5. Others
| Display |
7 inch Wide Color TFT LCD Resistive Touch Panel |
| Interface |
RS-232C |
| Internal Printer |
Thermal Line Printer |
| Power Supply |
100-240VAC, 1.0-0.6A, 50/60Hz |
| Dimensions / Weight |
261(W) x 513(D) x 433(H) / 16Kg |
- ** Designs and details can be changed without prior notice for improvements.
