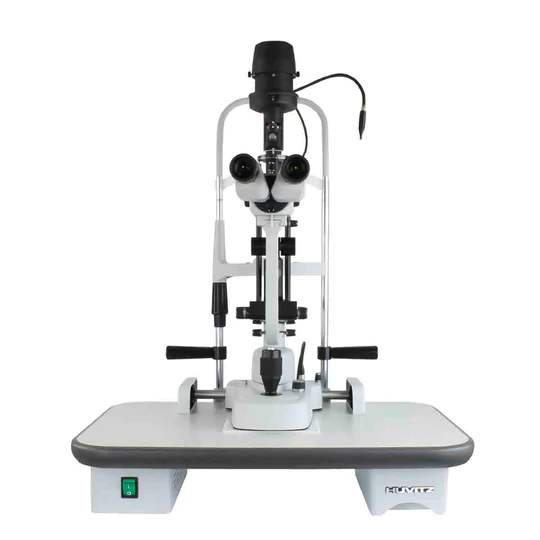

Slit Lamp HS-5000
Huvitz HS-5000 Slit Lamp Microscope offers increased accuracy, a wide field of view with a crystal clear image every time.
Huvitz, an industry-leading slit lamp manufacturer and world-class optics designer, presents the HS-5000 Slit Lamp. This Haag-Streit Style Tower Illumination features a Galilean Converging Binocular Optical System and a five-position drum style magnification changer that offers a wide field of view and a crisp clear image every time. The omnidirectional joystick with trigger button and five built-in filters are among the many “”extras”” you’ll enjoy when selecting the quality designed slit lamp.
| SLIT ILLUMINATION | |
| Slit Length(mm) | 0.3~14 |
| Slit Width (mm) | 0~14 continuous |
| Slit Projection | 1x |
| Aperture Diaphragms | 0.02 / 0.04 / 0.11 / 0.19 / 0.4 / 0.47in (0.3 / 1 / 3 / 5 / 9 / 12mm) |
| Filters | Cobalt Blue, Red-Free, Grey, Heat absorption and Yellow |
| Slit Rotation | 0°~180°continuous |
| PATIENT’S EYE / PRISM | |
| Angle of Incidence | 0°, 5°, 10°, 15°, 20° |
| Surface Working Distance | 3.15in (80mm) |
| MICROSCOPE | |
| Microscope | 5 steps |
| Type | Galilean Converging Binocular |
| Magnification | 5 Position Rotating Drum |
| Eyepieces | 12.5x |
| Total Magnifications | 6x, 10x, 16x, 25x, 40x |
| Real Fields of View (mm) | 38.5,22.2, 15.2, 10.5, 6.7 |
| Inter-Pupillary Adjustment | 2.16in ~ 3.15in (55mm ~ 80mm) |
| BASE | |
| Vertical Movement | 1.10in (28mm) |
| Longitudinal Movement | 3.07in (78mm) |
| Lateral Movement | 4in (98mm) |
| Fine Base | 0.4in (10mm) |
| Power Supply | Free Voltage 100~240V AC |
| Voltage Frequency | 50/60Hz |
| Power Consumption | 70VA |
| Instrument Voltage | 12V DC |
| Halogen Bulb | 12V 30W |
| Fixation Point Bulb | 3.4V 20mA |
| OPTION: PC, Table Designs and details can be changed without prior notice for the purposes of improvement | |
